In the fast-paced world of stage lighting, where reliability can make or break a performance, True DMX ports are a critical feature on devices like DMX splitters, nodes, and controllers. These ports, often labeled distinctly on professional equipment, ensure robust signal distribution in complex lighting networks. This article explores what True DMX ports are, how they function, and why they are essential for building resilient DMX networks in theater, concerts, and live events. 🌟
True DMX refers to a direct, unprocessed DMX signal path through a device. Unlike standard DMX ports, which may involve buffering, amplification, or signal processing, a True DMX port acts as a pass-through connection. It routes the incoming DMX signal directly to the output without relying on the device’s internal electronics. This is achieved through a simple galvanic connection, ensuring the signal remains unaffected by the device’s power state or operational status.
Think of a True DMX port as a conduit—similar to a power strip that passes electricity without altering it. This design makes True DMX ports independent of the device’s circuitry, providing a failsafe mechanism for signal continuity. In professional setups, this feature is invaluable for maintaining performance integrity.
In a typical DMX network, devices like splitters or converters are daisy-chained to distribute the DMX signal to multiple fixtures. A common approach is to feed the signal into the input of one device and use its output to connect to the next device’s input. However, this method introduces two significant risks:
- Loss of Output Ports: Each device used to forward the signal consumes an output port that could otherwise connect to lighting fixtures, reducing the network’s capacity.
- Single Point of Failure: If a device in the chain fails—due to power loss, hardware malfunction, or configuration issues—the entire downstream network loses the DMX signal.
True DMX ports eliminate these risks. By providing a direct signal path, they allow devices to be chained without sacrificing output ports or introducing dependencies on individual device functionality. This ensures that the DMX signal continues to flow, even if a device is offline or malfunctioning, making it a cornerstone of reliable stage lighting infrastructure. 🎭

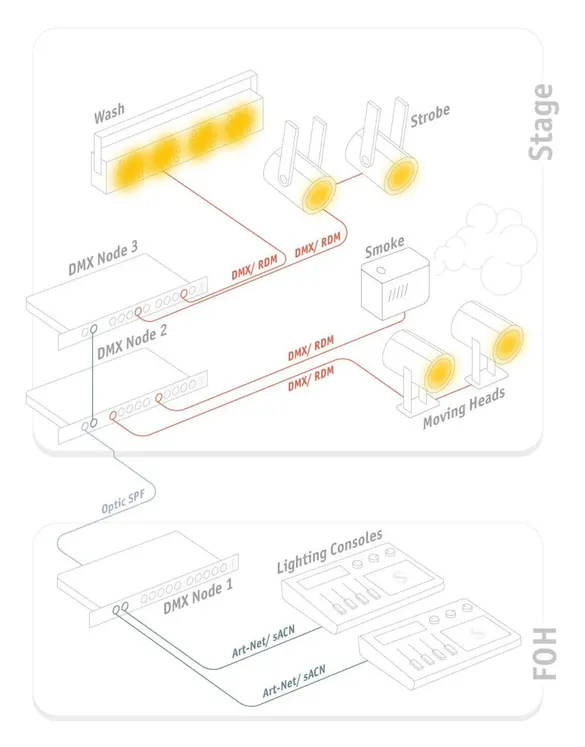

True DMX ports are designed to maintain signal integrity across a chain of devices. Here’s how they function in a typical setup:
- Direct Signal Routing: The incoming DMX signal enters the device’s input and is simultaneously routed to the True DMX output port via a galvanic connection. This bypasses the device’s internal processing, ensuring the signal remains intact.
- Device Independence: The True DMX output functions regardless of whether the device is powered on, configured correctly, or operational. This is critical for large-scale installations where downtime is not an option.
- Chain Continuity: By connecting the True DMX output of one device to the input of the next, you create a robust chain that maintains signal flow even if individual devices fail.
For example, in a theater production with multiple DMX splitters, the signal can be fed from a controller to the first splitter’s input, then passed through its True DMX port to the next splitter, and so on. This setup ensures that a single device failure doesn’t disrupt the entire network, providing peace of mind for lighting designers and technicians.
Professional-grade devices, such as Sundrax’s Splitter Pro and ArtGate Pro, incorporate True DMX ports as a standard feature. These devices are engineered for demanding environments, offering:
- Galvanic Isolation: Protects against signal interference and ensures clean data transmission.
- Robust Design: Built to withstand the rigors of touring, theater, and large-scale installations.
- Multi-Protocol Support: Compatible with DMX512, RDM, ArtNet, sACN, and more, making them versatile for modern lighting networks.
For instance, the Sundrax Splitter Pro features multiple optically isolated DMX ports alongside True DMX outputs, allowing technicians to build expansive, fault-tolerant networks. Similarly, the ArtGate Pro combines True DMX functionality with advanced Ethernet-to-DMX conversion, supporting complex setups with minimal latency. These features make Sundrax equipment a go-to choice for professionals prioritizing stability and scalability.
To provide clarity for systems integrators, the following table outlines key characteristics of True DMX ports compared to standard DMX ports:
Feature: Signal Processing
True DMX Port: None, direct galvanic connection.
Standard DMX Port: Buffered or amplified.
Feature: Dependency on Device
True DMX Port: Independent of power or operational status.
Standard DMX Port: Requires device to be powered and functional.
Feature: Use Case
True DMX Port: Signal pass-through for daisy-chaining.
Standard DMX Port: Signal distribution to fixtures.
Feature: Failure Impact
True DMX Port: No impact on downstream devices.
Standard DMX Port: Failure disrupts downstream signal.
Feature: Typical Connector
True DMX Port: 5-pin XLR (F).
Standard DMX Port: 5-pin or 3-pin XLR (F).
This table highlights why True DMX ports are essential for mission-critical applications where signal reliability is paramount.
To maximize the benefits of True DMX ports, consider these recommendations:
- Plan Your Network Topology: Map out your DMX chain to ensure True DMX ports are used strategically for signal pass-through, preserving output ports for fixtures.
- Use Quality Cables: Employ 5-pin XLR cables with 110-ohm impedance to minimize signal degradation, especially in long runs. Avoid using audio cables, which can cause interference.
- Verify Compatibility: Ensure all devices in the chain support True DMX or have compatible pass-through functionality to avoid bottlenecks.
- Test Redundancy: Simulate device failures during setup to confirm that the True DMX chain maintains signal integrity.
By following these practices, lighting professionals can create robust, fault-tolerant DMX networks that perform reliably under pressure.
1. What does a True DMX port actually do?
A True DMX port gives you a straight, unbuffered pass-through of the DMX signal. That means even if the device is powered off or crashes mid-show, the signal keeps going. It’s a simple but critical layer of redundancy.
2. How is it different from a regular DMX output?
Standard DMX outputs usually depend on internal circuitry — no power, no signal. A True DMX port, on the other hand, uses a galvanic connection that doesn’t rely on the device’s state. It’s like a hardwired bridge that always stays open.
3. Why should I care about True DMX in larger setups?
Because when you're running dozens (or hundreds) of fixtures, one bad link can kill your whole downstream chain. True DMX gives you peace of mind that even if a splitter or node fails, the signal won’t drop.
4. Can True DMX ports pass RDM data too?
Yes — as long as the entire line supports RDM. The True DMX port itself won’t block it, but keep in mind that any non-RDM-compliant device downstream can interfere.
5. How can I tell if a device has a True DMX port?
Look for labels like “Thru,” “True DMX,” or similar near a 5-pin XLR output. It’s often documented in the device manual. If in doubt, power down the unit and check if the DMX signal still passes through.
6. Are True DMX ports overkill for small venues?
Not necessarily. Even in small rigs, it’s good practice to design for stability — especially if you plan to scale up. One failed device shouldn’t take out your whole lighting rig.
7. What about long cable runs — any concerns there?
True DMX ports can absolutely handle long runs, but stick to proper DMX cabling — 110-ohm impedance, ideally shielded. As with any DMX line, try to stay under 200 meters per run to avoid signal degradation.
8. How does Sundrax implement True DMX in their gear?
Sundrax takes it seriously. Devices like the Splitter Pro and ArtGate Pro include True DMX ports with galvanic isolation — that’s physical and electrical separation — so your signal stays clean and uninterrupted. It’s a solid choice for demanding live environments.
True DMX ports are a hallmark of professional stage lighting equipment, offering a simple yet powerful solution for building resilient DMX networks. By enabling direct signal pass-through, they eliminate single points of failure and preserve valuable output ports for lighting fixtures. Devices like Sundrax’s Splitter Pro and ArtGate Pro exemplify this technology, combining True DMX functionality with advanced features like galvanic isolation and multi-protocol support. For lighting designers and technicians, understanding and utilizing True DMX ports is essential for delivering flawless performances in theaters, concerts, and live events. 🚀
