ArtGate Pro

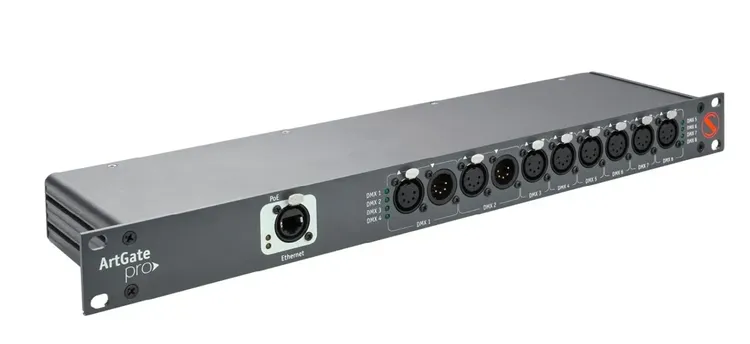

The Bidirectional DMX<->ArtNet/sACN converter has one Ethernet ports and can be used as a splitter or booster, while also allowing for merging of incoming signals and prioritizing the strongest one.

ArtGate Pro is a smart Ethernet/DMX converter with merging and data backup functions. It is designed to control DMX512 based lighting equipment.

ArtGate Pro supports DMX512, RDM (ANSI E1.20), ArtNet (1, 2, 3, 4), sCAN (Draft, Release), KiNet (v1, v2), RTTrPL and Ethernet based communication in a variety of signal receive/transfer combinations.

The device can be powered (for redundancy purposes) either in parallel from 110/250 V mains or via PoE (Power over Ethernet according to IEEE 802.3af standard).

Additional Ethernet equipment is connected via the integrated two-port 10/100/1000 Mbps switch with integrated media converter per SFP module. One pass-through (TRUE) DMX ports are used for DMX communication. In case of emergency, the converter is equipped with a dual trigger input.

The hardware can be configured via the web interface, ArtGate Setting utility, third-party software supporting the ArtNet protocol or ARISTO software.

ArtGate Pro is designed for installation in a 19" rack. The height of the converter is 1U.

DMX Bi-Direct
DMX Bi-Direct
Bidirectional DMX network, faultless conversion in both ways
Supports RDM
Supports RDM
Full RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system
UltraStart
UltraStart
Ready device in less than 3 seconds after power supply
Galvanic Isolated Ports
Galvanic Isolated Ports
Full isolation of each port to create reliable protection against current surges
Natural Heat Convection
Natural Heat Convection
No fans, no coolers, no vent slots - full protection from dust
Power over Ethernet
Power over Ethernet
PoE 802.3af mode A, B: network cable may carry power supply, only network connection may be made
2 IP adresses per Device
2 IP adresses per Device
Each device has an additional Master IP that guarantees successful connection
User-Friendly Web Interface
User-Friendly Web Interface
A simple web interface that works exactly as the user expects it to
Trigger Input
Trigger Input
Preset scenarios triggered by external events and alarms

Overview: ArtGates by Sundrax / DMX Ethernet Nodes

Rack mount bidirectional DMX512-Ethernet converter, splitter, booster, intelligent merger. ArtGates supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL.

Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade to merge up to 4 incoming streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs.

Watch on YouTube

Overview

Multifunctional splitters for larger DMX networks boosting the signal to create a network of 5 or 10 additional DMX lines from DMX input. All input and output channels have full galvanic isolation. Remote Device Management (RDM) compatible. The devices are suitable for indoor and outdoor use. Splitters are powered by 100-250V industrial AC mains, power consumption is less than 5 watts.

Watch on YouTube

Rack form factor 1U 11 cm deep with IP20 protection
Maintaining performance at voltages up to 305 V
Supports one TRUE DMX port
Supports one Ethernet ports
Supports DMX512, ArtNet (1,2,3,4) protocols, RDM (ANSI E1.20), sACN (Draft, Release), KiNet (v1, v2), RTTrPL
Intelligent indication of operating modes
RDM protocol filtering function (ANSI E1.20)

Save function for setting profiles
Galvanic isolation of DMX ports
Fixed IP address support for access to settings
Intuitive web interface
Supports various merging modes HTP, LTP,AUTO, PRIORITY
Supports two trigger inputs for external events and alarms
Free cooling function without use fans and holes in the case
PowerCON TRUE1power connector

Mechanical: Housing: Short 1U Rack
Material: metal
Dimensions, mm: 482,6 (L) x 43,6 (H) x 125,5(W)
Mass: 1.2 kg
Mounting: rack 1 unit
Power & Electrical: Power supply: ~90-277 VAC, 50/60 Hz,
PoE 802.15f mode A, B
Input Power (max): 5 W
Environmental: Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE, RoHS
Warranty: 36 months
Control / Data Connections: Supported protocols: DMX512, RDM, ArtNet I, II, III,
IV, sACN draft, release, KiNet v1, v2 , RTTrPL
DMX refresh rate: 44 Hz

Inputs / Outputs: DMX ports: 4 or 8
DMX connectors: 2 XLR (3/5) M, 8 XLR (3/5) F
Ethernet ports: 1 (10/100 Base-TX), PoE
Ethernet connectors: RJ-45 / etherCON
Trigger connectors: terminal block
PowerCON ports: 1 (TRUE1)
Configuration / Indication: Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet activity
Package Contents: ArtGate Pro
Terminal blocks

DMX interface cable Sundrax Entertainment

ArtGate Pro
