ArtGate Board: Transforming Stage Lighting at Espaço AURI and Cultura Artística

Introduction

At Sundrax, we specialise in DMX signal transmission and conversion equipment. Our recent project at Espaço AURI and Cultura Artística in São Paulo demonstrates how our ArtGate Board, a high-precision Ethernet to DMX converter, enhances stage lighting systems with efficiency and flexibility.

Project Overview

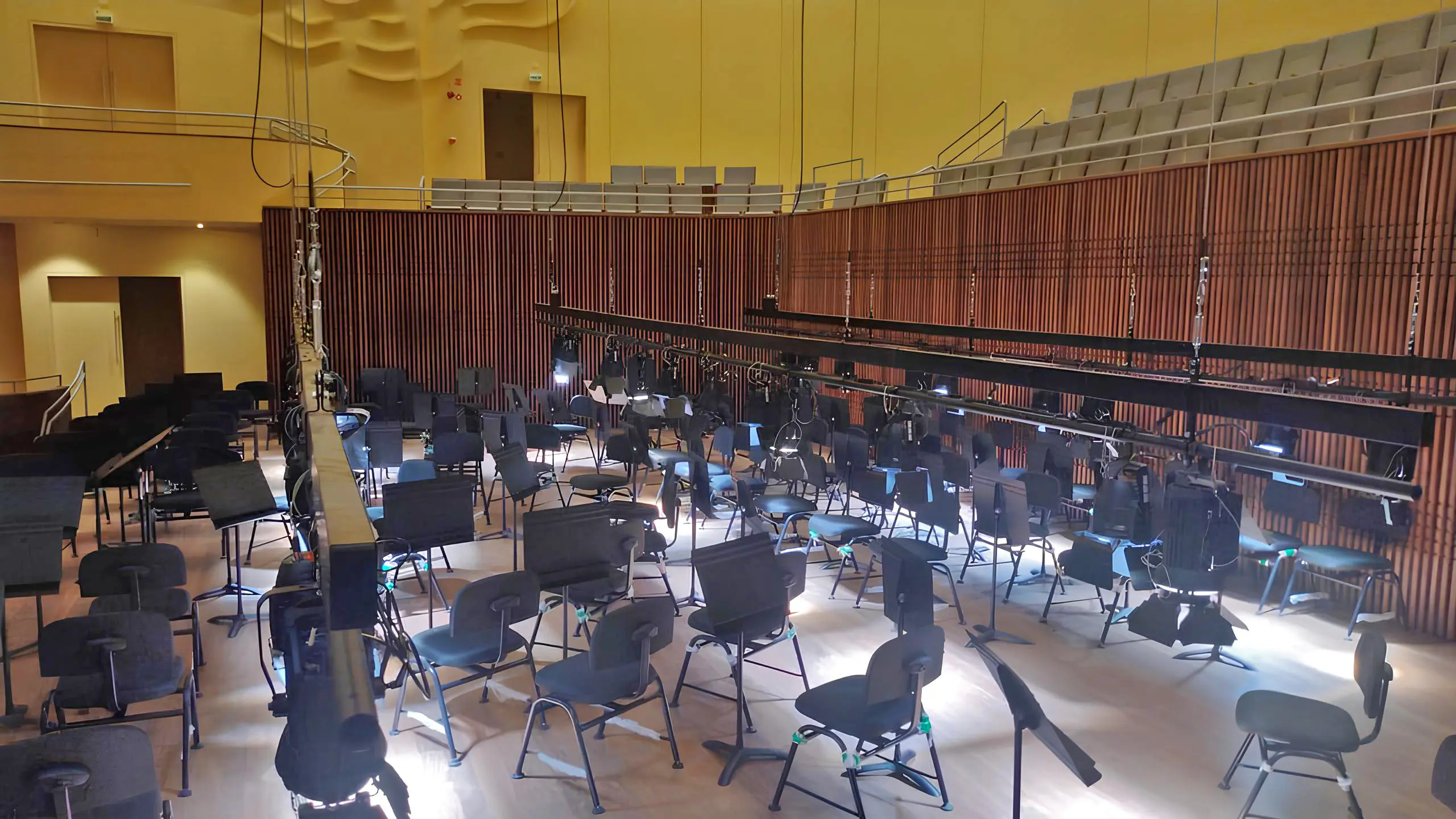

Espaço AURI and Cultura Artística, two prominent cultural venues in São Paulo, feature advanced stage technologies requiring dynamic lighting control. The project demanded a sophisticated lighting solution to complement their innovative stage setups and complete lighting systems.

Solution Provided

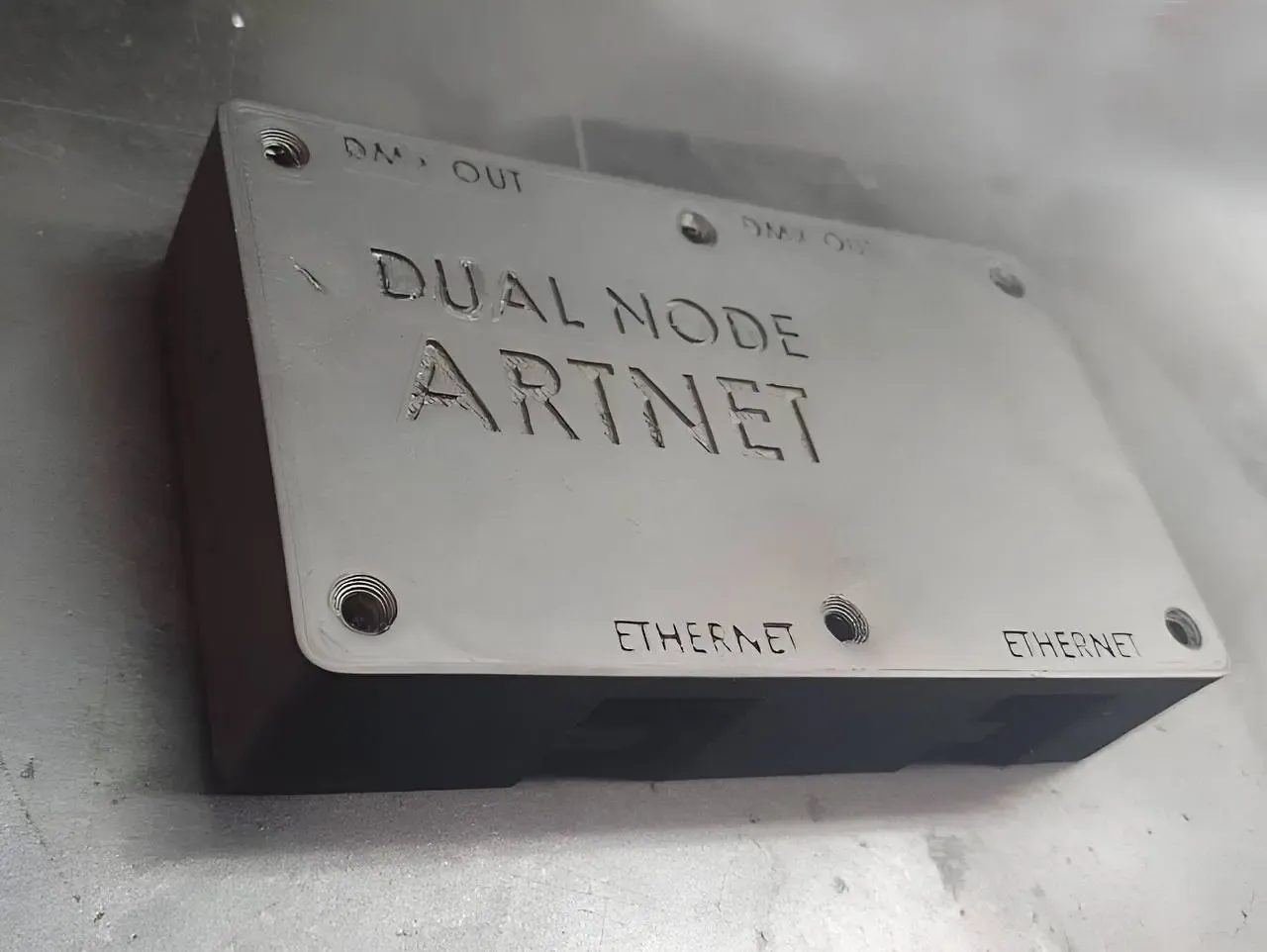

Sundrax supplied the ArtGate Board, an Art-Net/sACN to DMX PCB converter with two optically isolated DMX ports. This equipment converts DMX signals to Ethernet, streamlining the lighting system deployment. Customers tailored it to their needs by designing 3D-printed cases using the provided dimensions and data. These custom cases housed the boards, integrating them seamlessly into the venues’ lighting setups.

Advantages of Using OEM Equipment

The ArtGate Board exemplifies the benefits of OEM solutions:

Ease of Installation: Its compact, casing-free design simplifies hidden installation in equipment enclosures, reducing setup time.

Cost and Time Savings: Converting DMX to Ethernet minimizes cabling needs, cutting deployment costs and time.

Customization: Customers leveraged provided data to create perfect-fit 3D-printed cases, optimizing functionality and space.

Versatility: Supports DMX512, RDM, ArtNet (1,2,3,4), sACN (Draft, Release), KiNet (v1,v2), and RTTrPL protocols for diverse applications.

Reliability: Features data merging and backup functions for uninterrupted performance.

Technical Details

DMX Ports: Two optically isolated ports

Ethernet: 10/100 Mbps connection

Power: 5V or PoE (IEEE 802.3af)

Dimensions: 67mm (L) x 15mm (H) x 54mm (W)

Weight: 0.05 kg

These specifications ensure compatibility with advanced lighting systems.

Conclusion

The ArtGate Board’s integration at Espaço AURI and Cultura Artística showcases its ability to deliver cost-effective, reliable, and customizable lighting control, enhancing the venues’ innovative designs.

Ready to upgrade your lighting system with OEM solutions? Contact Sundrax for a consultation tailored to your project’s needs.
