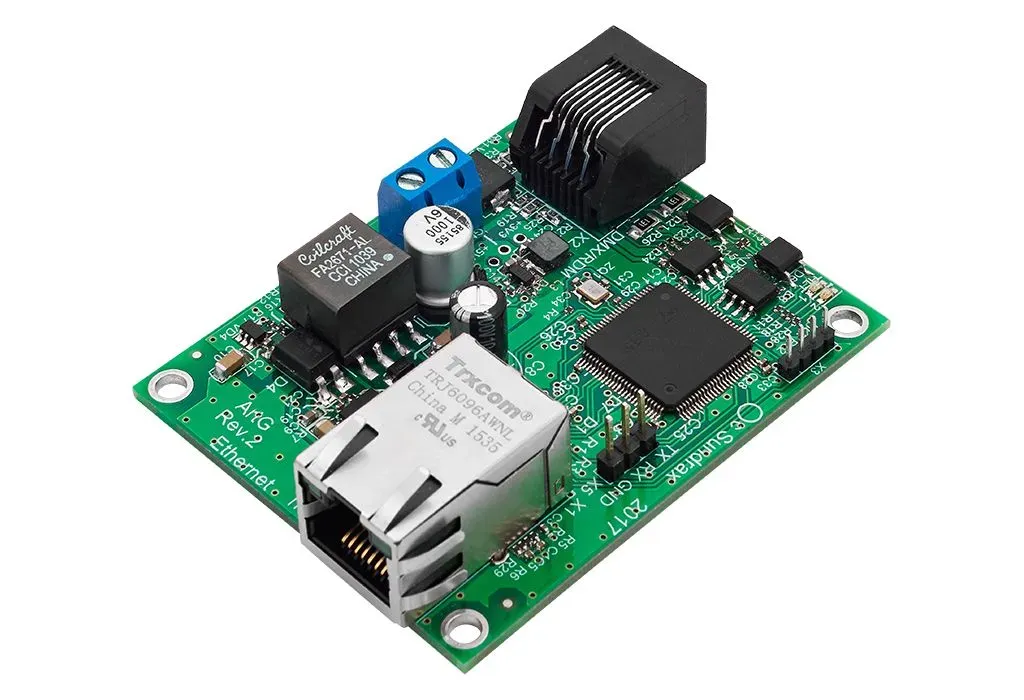

ArtGate Board

High-Precision Ethernet Conversion for Advanced Lighting Systems

Art-Net/sACN to DMX PCB Converter with two optically isolated DMX ports

ArtGate Board is a smart Ethernet/DMX converter with data merging and backup functions. It is designed to control DMX512-based lighting equipment.

ArtGate Board supports DMX512, RDM (ANSI E1.20), ArtNet (1, 2, 3, 4), sCAN (Draft, Release), KiNet (v1, v2), RTTrPL, and Ethernet-based communication in a variety of signal reception/transmission combinations.

The device can be powered (for redundancy purposes) either in parallel from the 110/250 V power grid or via PoE (Power over Ethernet, according to IEEE 802.3af standard).

For configuration and data transfer, the device is equipped with an Ethernet port with a connection speed of 10/100 Mbps.

The hardware can be configured through the web interface, the ArtGate Setting utility, third-party software that supports the ArtNet protocol, or ARISTO software.

The unit is designed as a casing-free unit and can be used indoors and in covered areas at positive ambient temperatures. It is designed for hidden installation in conduits, cavities, or third-party equipment enclosures.

  • DMX Bi-Direct Sundrax Entertainment Lighting Control

    DMX Bi-Direct

    DMX Bi-Direct

    Bidirectional DMX network, faultless conversion in both ways

  • Supports RDM Sundrax Entertainment Lighting Control

    Supports RDM

    Supports RDM

    Full RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system

  • UltraStart Sundrax Entertainment Lighting Control

    UltraStart

    UltraStart

    Ready device in less than 3 seconds after power supply

  • Galvanic Isolated Ports Sundrax Entertainment Lighting Control

    Galvanic Isolated Ports

    Galvanic Isolated Ports

    Full isolation of each port to create reliable protection against current surges

  • Power over Ethernet Sundrax Entertainment Lighting Control

    Power over Ethernet

    Power over Ethernet

    PoE 802.3af mode A, B: network cable may carry power supply, only network connection may be made

  • Each device has an additional Master IP that guarantees successful connection

    2 IP adresses per Device

    2 IP adresses per Device

    Each device has an additional Master IP that guarantees successful connection

  • Friendly-UI Sundrax Entertainment Lighting Control

    User-Friendly Web Interface

    User-Friendly Web Interface

    A simple web interface that works exactly as the user expects it to

  • Frame-less execution
    Supports DMX512, ArtNet (1,2,3,4),
    RDM (ANSI E1.20), sACN (Draft, Release), KiNet (v1, v2), RTTrPL protocols
    Save function for configuration profiles
    Supports fixed IP address for configuration access
    Intuitive web interface
    Supports multiple merging modes:
    HTP, LTP, AUTO, PRIORITY

DMX Connection Diagram
ArtGate Board

Universal DMX512 Signal Converter
Professional Remote Device Management Converter
Enterprise Ethernet DMX Converter
Enterprise Streaming ACN Converter
Professional Color Kinetics Converter
Professional Motion-Triggered Lighting Converter

All relevant industry-standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax), DMX512 and RDM are supported

Performance optimised PCB boards ready for integration into your installations and equipment. Same functionality and advantages as classic Sundrax products, cheaper prices and bulk ordering available.

PCB Art-Net/sACN to DMX converter with two optically isolated DMX ports Sundrax Entertainment
ArtGate Board
Art-Net/sACN to DMX PCB Converter with two optically isolated DMX ports
High-Precision Ethernet Conversion for Advanced Lighting Systems
Mechanical

Housing: No
Dimensions, mm: 67 (L) x 15 (H) x 54 (W)
Weight: 0.05 kg
Installation: stage equipment, lamps, etc.

Power & Electrical

Power supply: 5V or PoE
Max Power Consumption: 1W

Environment

Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months

Control / Data Connections

Supported protocols: DMX512, RDM,
ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2
RTTrPL
Refresh rate DMX data: 44 Hz

Inputs / Outputs

DMX ports: 1
DMX connectors: RJ-45
Ethernet ports: 1 (10/100 Base-TX)
Ethernet connectors: RJ-45 / etherCON

Configuration / Indication

Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet

Package Contents

ArtGate Board

  • ArtGate Board
  • AGB-6-2DE
  • 5060452245058
