Precision Indoor Signal Distribution Solution

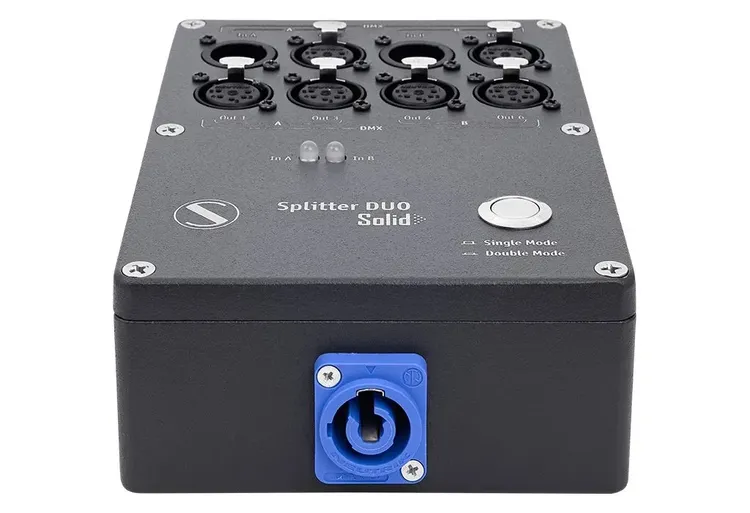

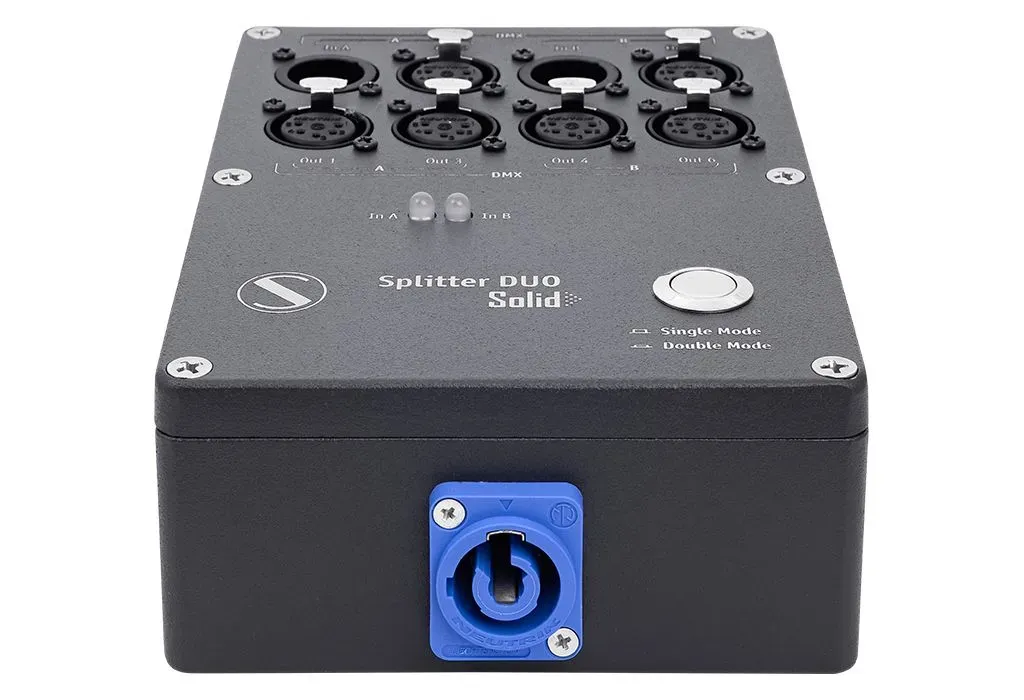

Splitter Duo Solid is a two-channel DMX512 interface splitter. It is designed to control DMX512 based lighting equipment.
The Splitter Duo Solid supports DMX512, RDM (ANSI E1.20) protocols from 1 or 2 inputs to 5 or 2 outputs.
The unit is powered from 110/220 V AC.
Splitter Duo Solid is configured by the buttons.
Splitter Duo Solid is designed for operation in above-zero temperatures, either on indoor or outdoor areas. The vandal resistant IP44 duralumin enclosure can be mounted on a bracket, vertical or horizontal surface.
DMX Bi-Direct
DMX Bi-DirectBidirectional DMX network, faultless conversion in both ways
Supports RDM
Supports RDMFull RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system
UltraStart
UltraStartReady device in less than 3 seconds after power supply
Highest Ingress Protection
Highest Ingress ProtectionTested for outdoor use: IP65 class, protected from total dust ingress and low pressure water jets from any direction
Galvanic Isolated Ports
Galvanic Isolated PortsFull isolation of each port to create reliable protection against current surges
Natural Heat Convection
Natural Heat ConvectionNo fans, no coolers, no vent slots - full protection from dust
XLR connectors
Time-tested in severe weather conditions
Single or double input modes
- Mechanical
Enclosure: vandal-resistant
Material: Metal
Dimensions, mm: 178 (L) x 59,4 (H) x 121 (W)
Weight: 1.2 kg
Installation: horizontal / vertical surface- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5 W
Fuse: 0.5 A- Environment
Operating Temperature: 0...+60°C
Storage Temperature: -50...+70°C
Operating Relative Humidity (max): 95%
IP Rating: IP 44
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX inputs: 2
DMX outputs: 6
DMX connectors: 2 XLR(3/5)M, 6 XLR(3/5)F
PowerCON port: 1- Configuration / Indication
Indicators: LED, for DMX inputs
- Package Contents
Splitter Duo Solid
Power cable
- Splitter Duo Solid, (3-pin)
- Splitter Duo Solid, (5-pin)
- SPSD-3-2D5D
- SPSD-5-2D5D
- 5060452246024
- 5060452246031
