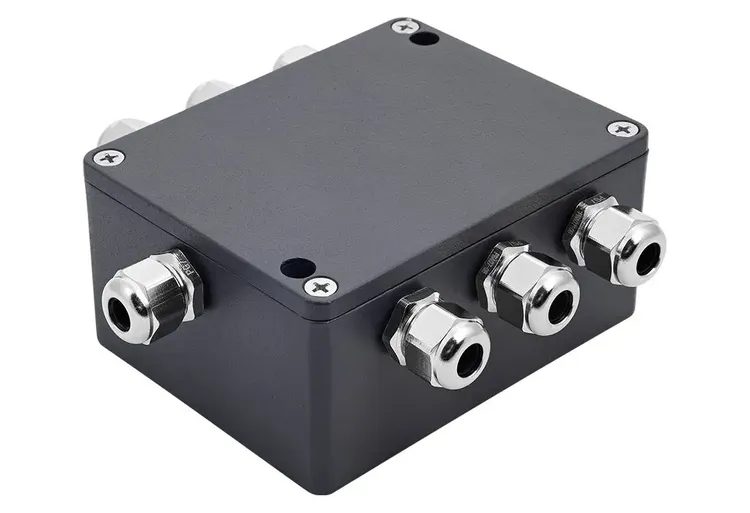

Splitter Duo Arma

High-Performance Outdoor Signal Distribution Hub

Your Outdoor Lighting Control Powerhouse

All-weather Outdoor DMX Splitter IP65 for splitting and joining signals (Duo). Connects to a DMX source, outputs amplified and branched signal. Power supply AC/DC – modification depending on your requirements.

What Common Lighting Control Problems Does Splitter Duo Arma Solve
  • Short circuits: Risk of equipment damage due to short circuits: galvanic isolation on each port protects devices from overvoltages. Interference or short circuits on one line will not affect the operation of others;
  • Lack of feedback: from connected devices, risk of errors in lighting installation: DMX Splitter 2-Way sends and receives RDM commands, obtaining information from fixtures about their operation and status, indicating data transfer;
  • Interference from RDM: we have provided the option for easy disabling of RDM using DIPswitches inside the case, so that incompatible fixtures operate correctly;
  • Diverse power supply or lack of access to mains: DC modification allows powering the Outdoor Splitter from a battery, making DMX signal splitting independent of an outlet;
  • Complex device configuration: Splitter Duo Arma is set up using DIP-switches installed on the device.
Environments and Application Conditions
  • Architectural and urban lighting projects;
  • Theme parks, museums, historical sites;
  • Touring and rental productions (for outdoor events, however Arma can also be used for covered areas dmx splitter).
Application Scenarios
  • Building facade lighting with separate control of DMX universes;
  • Networked DMX installation in parks and landscapes with long cable runs;
  • Lighting of bridges and urban infrastructure objects in harsh weather conditions;
  • Street festivals and events;
  • Street Art installations.



  • Supports RDM Sundrax Entertainment Lighting Control

    Supports RDM

    Supports RDM

    Full RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system

  • UltraStart Sundrax Entertainment Lighting Control

    UltraStart

    UltraStart

    Ready device in less than 3 seconds after power supply

  • Highest Ingress Protection Sundrax Entertainment Lighting Control

    Highest Ingress Protection

    Highest Ingress Protection

    Tested for outdoor use: IP65 class, protected from total dust ingress and low pressure water jets from any direction

  • Galvanic Isolated Ports Sundrax Entertainment Lighting Control

    Galvanic Isolated Ports

    Galvanic Isolated Ports

    Full isolation of each port to create reliable protection against current surges

  • Natural Heat Convection Sundrax Entertainment Lighting Control

    Natural Heat Convection

    Natural Heat Convection

    No fans, no coolers, no vent slots - full protection from dust

    • DMX-splitter in a reinforced housing maintains operability at voltages up to 305 V, indicating stability in unstable electrical networks;
    • RDM support provides extended diagnostics and remote management capabilities, simplifying setup and maintenance of the DMX-system on site;
    • Built-in web interface speeds up commissioning of the Outdoor DMX hub;
    • Power compatibility 100-250 V AC or 9-36 V DC allows ordering the splitter most suitable for your lighting setup;
    • 36-month warranty and CE, RoHS certificates confirm international quality and safety of the product. We are always available if you need technical support, manuals, and documentation.

    Housing Features
    1. Option for vertical or horizontal mounting on a flat surface adapts the device to common outdoor installation scenarios
    2. Duralumin housing IP65 with full protection from dust and small particles, as well as with protection from low-pressure water jets impermeable for uninterrupted outdoor operation
    3. Operating temperatures from -40 to +70 °C (from -40 to +158 °F) and resistance to 100% relative air humidity allow using the DMX Splitter IP65 practically anywhere
    4. Durable metal cable glands ensure longevity in aggressive environmental conditions
    5. Fanless design prevents ingress of the smallest dust particles, smoke, and moisture, making the device unbreakable – in fact, this is a vandal resistant dmx splitter that operates intensively for years and decades
    6. Free configuration allows setting up signal branching to 6 ports in two schemes: 1 to 5 or 2 times 1 to 2. The device can function as one splitter or as two independent splitters.

    Usage Examples
    1. Example 1: Pixel mapping of LED on the facade of a historical building, Shri Swaminarayan Mandir, Hindu temple in New Jersey, USA. Splitter Duo Arma operates as part of a comprehensive DMX-network, supporting its reliability and flexibility in managing outdoor lighting of a complex architectural object;
    2. Example 2: Zoologico La Aurora in Guatemala City, the largest green area of the city, where durable and reliable lighting equipment is required. Use of the Splitter Duo Arma device in La Aurora Zoo improved lighting, creating an impressive atmosphere for visitors;
    3. Example 3: Acapulco, Mexico (absolute minimum +11 °C, maximum +41 °C, proximity to the ocean) control of Maya Palace bridge lighting using sheltered outdoor dmx splitter DUO Arma;
    4. Example 4: Jordal Idrettspark, Norway, Oslo (temperatures from −26 °C to +35 °C) – rough use dmx splitter did not degrade its functionality and performance in any way, it proved to be in its element.

    If you need additional usage examples for Splitter Duo Arma or consultation on selecting equipment for your projects, get in touch.

DMX Connection Diagram
Splitter Duo Arma

Universal DMX512 Signal Converter
Professional Remote Device Management Converter
Enterprise Ethernet DMX Converter
Enterprise Streaming ACN Converter

All relevant industry-standard protocols DMX512 and RDM are supported

Arma series are carefully crafted “offtrack” devices excellent for any outdoor installations under any weather conditions

Dual-zone waterproof optically isolated DMX splitter RDM hub for outdoor installation Sundrax Entertainment
Splitter Duo Arma
Your Outdoor Lighting Control Powerhouse
High-Performance Outdoor Signal Distribution Hub
Mechanical

Housing: dust and moisture resistant
Material: metal
Dimensions, mm: 129 (L) x 56 (H) x 118 (W)
Weight: 0.85 kg
Installation: flat surface, clamp

Power & Electrical

Power supply: ~ 100-250 V, 50/60 Hz or 9-36 V
Max power consumption: 5W
Fuse: 0.5 A

Environment

Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 100%
IP Rating: IP 65
Certificates: CE compliant, RoHS
Warranty: 36 months

Control / Data Connections

Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz

Inputs / Outputs

DMX inputs: 1, 2 or 3
DMX Outputs: 4, 5 or 2
DMX connectors: terminal blocks 15EDGVC-3.81-03,
15EDGVC-3.5-03

Configuration / Indication

Setting: DIP Switch
Indicators: LED, for DMX inputs

Package Contents

Splitter DUO Arma
Terminal Blocks

  • Splitter Duo Arma, AC, plastic input
  • Splitter Duo Arma, DC, plastic input
  • Splitter Duo Arma, AC, metal input
  • Splitter Duo Arma, DC, metal input
  • SPAD-P-2D4D-AC
  • SPAD-P-2D4D-DC
  • SPAD-M-2D4D-AC
  • SPAD-M-2D4D-DC
  • 5060452245874
  • 5060452245881
  • 5060452245898
  • 5060452245904
