RadioGate Solid

Wireless DMX Controller for Indoor Installations

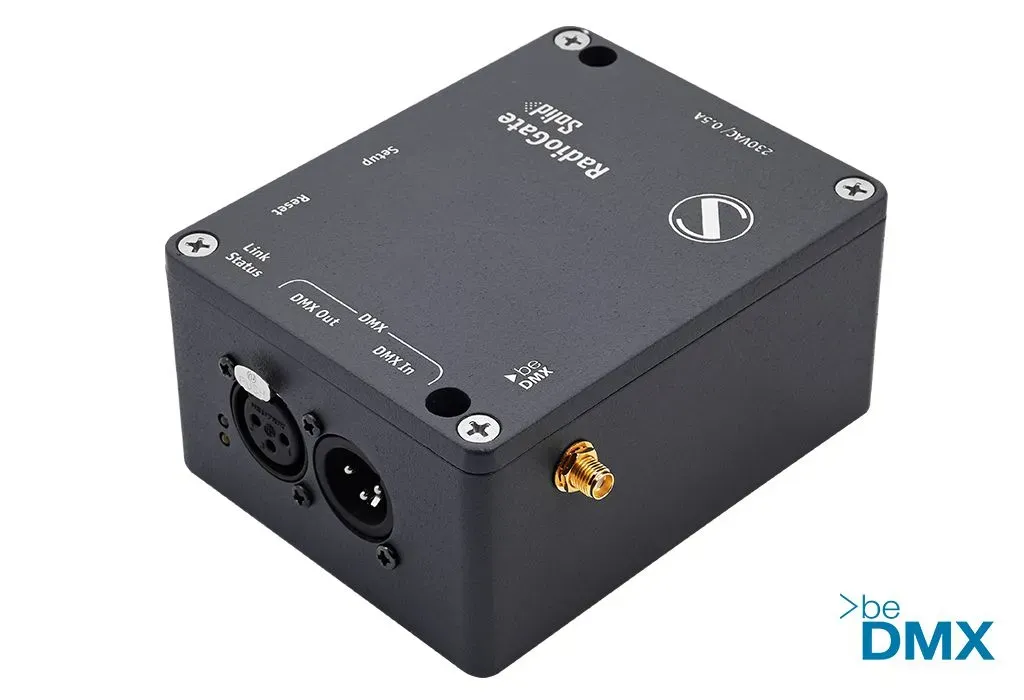

Wireless DMX transceiver for indoor installation

RadioGate Solid is a wireless transceiver of the beDMX standard. It is designed to control DMX512 based lighting equipment.

RadioGate Solid supports two-way DMX512, RDM (ANSI E1.20) data transmission via radio using the beDMX protocol. The transmission range is up to 300 metres with a standard antenna, or up to 1500 metres with a specialised antenna.

The unit is powered from 110/220 V AC or 12-24 V DC.

RadioGate Solid is configured by the buttons on the body.

RadioGate Solid is designed for operation in above-zero temperatures, either on indoor or outdoor areas. The vandal resistant IP44 duralumin enclosure can be mounted on a bracket, vertical or horizontal surface.

  • DMX Bi-Direct Sundrax Entertainment Lighting Control

    DMX Bi-Direct

    DMX Bi-Direct

    Bidirectional DMX network, faultless conversion in both ways

  • Supports RDM Sundrax Entertainment Lighting Control

    Supports RDM

    Supports RDM

    Full RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system

  • UltraStart Sundrax Entertainment Lighting Control

    UltraStart

    UltraStart

    Ready device in less than 3 seconds after power supply

  • Highest Ingress Protection Sundrax Entertainment Lighting Control

    Highest Ingress Protection

    Highest Ingress Protection

    Tested for outdoor use: IP65 class, protected from total dust ingress and low pressure water jets from any direction

  • Galvanic Isolated Ports Sundrax Entertainment Lighting Control

    Galvanic Isolated Ports

    Galvanic Isolated Ports

    Full isolation of each port to create reliable protection against current surges

  • Natural Heat Convection Sundrax Entertainment Lighting Control

    Natural Heat Convection

    Natural Heat Convection

    No fans, no coolers, no vent slots - full protection from dust

  • Back-Up Transmitter Sundrax Entertainment Lighting Control

    Back-Up Transmitter

    Back-Up Transmitter

    This device may be used as a back-up transmitter to ensure fail-proof installation infrastructure

  • Designed for touring/rental companies

    Simple configuration

    1 button programming

    DC or AC power source

    Full galvanic isolation

    Support DMX512, RDM

    Bidirectional communication

    Resistance to interference

    Up to 1500m transmission range

    Neutrik® XLR metal connectors

    Lost data replacement

RadioGate Solid

All relevant industry-standard protocols such as beDMX, DMX512 and RDM are supported

Solid series has been specifically designed for adverse environments, hardly accessible and excessively dusty indoor locations. These series include wireless DMX or ArtNet/sACN/RDM transceivers/receivers, bidirectional DMX to ArtNet/sACN converters, wireless DMX/ArtNet/sACN ransmitter/receivers.

Mechanical

Housing: solid case
Material: metal
Dimensions, mm: 125,1(D) x 55,7(H) x 95,8(W)
Mass: 0.85 kg
Mounting: surface, truss

Power & Electrical

Power supply: ~90-250 VAC, 50/60 Hz or 12-24 VDC
Max current consumption: 0.1
Mains Fuse: 0.5 A (VAC modification)

Environment

Operating Temperature: 0...+60°C
Storage Temperature: -50...+70°C
Operating Relative Humidity (max): 95%
IP Rating: IP 44
Certification: CE compliant, RoHS
Warranty: 36 month (return to base)

Control / Data Connections

Supported protocols: DMX512, RDM
DMX data refresh rate: 44 Hz
Transmission range (standard antenna): 100 m
Communication protocol: Bluetooth 5.0, BeDMX
RF band: 2.4 GHz

Inputs / Outputs

Wireless channels: 1
DMX ports: 2 isolated (depends on modification)
Connectors: 2 XLR(M), 2 XLR(F) (5 pins)



Configuration / Indication

Setup: buttons
Indication: LEDs for DMX activity

Package Contents

RadioGate Arma
1 antenna 2.4 GHz

  • RadioGate Solid, (5-pin), AC
  • RadioGate Solid, (3-pin), AC
  • RadioGate Solid, (5-pin), DC
  • RadioGate Solid, (3-pin), DC
  • RGS-5-DC-AC
  • RGS-3-DC-AC
  • RGS-5-DC-DC
  • RGS-3-DC-DC
  • 5060452245393
  • 5060452245409
  • 5060452245416
  • 5060452245423
