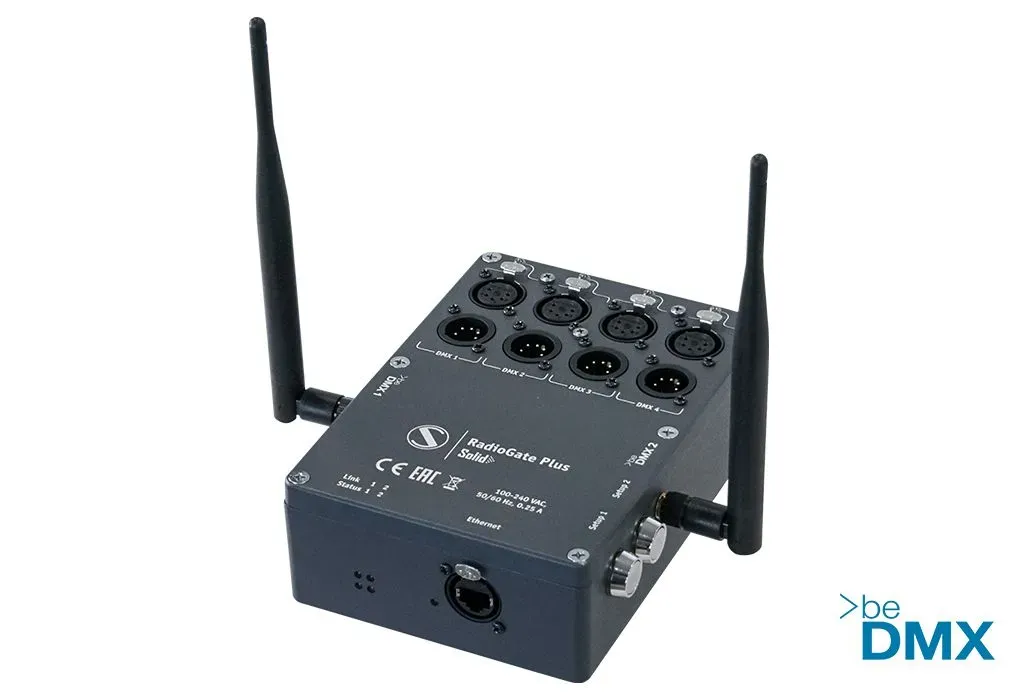

RadioGate Plus Solid

Universal Wireless Controller for Professional Lighting

All-in-one: Wireless DMX transceivers, Art-Net/sACN to DMX converter, and DMX splitter/amplifier with RDM functionality for indoor installation

RadioGate Plus Solid is a smart beDMX/Ethernet/DMX converter with data merging and backup functions. It is designed to control DMX512-based lighting equipment.

RadioGate Plus Solid supports DMX512, RDM (ANSI E1.20), ArtNet (1, 2, 3, 4), sACN (Draft, Version), KiNet (v1, v2), RTTrPL, and Ethernet-based communication in various signal reception/transmission combinations through the radio channel (beDMX) and Ethernet network.

The device can be powered (for redundancy purposes) either in parallel from the 110/250 V AC power grid, 12-24 V DC power supply, or via PoE (Power over Ethernet, according to the IEEE 802.3af standard).

Additional Ethernet equipment connects through the integrated 10/100 Mbps port.

The hardware can be configured through the web interface, the ArtGate Setting utility, third-party software compatible with the ArtNet protocol, or ARISTO software.

RadioGate Plus Solid is designed to operate in temperatures above zero, whether in indoor or outdoor areas. The vandal-resistant and durable duralumin housing with an IP44 rating can be mounted on a bracket, on a vertical or horizontal surface.

  • DMX Bi-Direct Sundrax Entertainment Lighting Control

    DMX Bi-Direct

    DMX Bi-Direct

    Bidirectional DMX network, faultless conversion in both ways

  • Supports RDM Sundrax Entertainment Lighting Control

    Supports RDM

    Supports RDM

    Full RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system

  • UltraStart Sundrax Entertainment Lighting Control

    UltraStart

    UltraStart

    Ready device in less than 3 seconds after power supply

  • Highest Ingress Protection Sundrax Entertainment Lighting Control

    Highest Ingress Protection

    Highest Ingress Protection

    Tested for outdoor use: IP65 class, protected from total dust ingress and low pressure water jets from any direction

  • Galvanic Isolated Ports Sundrax Entertainment Lighting Control

    Galvanic Isolated Ports

    Galvanic Isolated Ports

    Full isolation of each port to create reliable protection against current surges

  • Natural Heat Convection Sundrax Entertainment Lighting Control

    Natural Heat Convection

    Natural Heat Convection

    No fans, no coolers, no vent slots - full protection from dust

  • Power over Ethernet Sundrax Entertainment Lighting Control

    Power over Ethernet

    Power over Ethernet

    PoE 802.3af mode A, B: network cable may carry power supply, only network connection may be made

  • Each device has an additional Master IP that guarantees successful connection

    2 IP adresses per Device

    2 IP adresses per Device

    Each device has an additional Master IP that guarantees successful connection

  • Back-Up Transmitter Sundrax Entertainment Lighting Control

    Back-Up Transmitter

    Back-Up Transmitter

    This device may be used as a back-up transmitter to ensure fail-proof installation infrastructure

  • 2 or 4 optically isolated DMX ports
    AC or DC power supply
    Interference-resistant beDMX protocol based on Bluetooth 5.0
    Minimal charging time, faster recovery after a brief power outage
    Master IP that never drops
    Maximum surge protection from 100 to 315 V
    Complete galvanic isolation of all ports
    Simple and user-friendly web interface or two-button programming
    Configurable DMX port address

DMX Connection Diagram
RadioGate Plus Solid

Universal DMX512 Signal Converter
Professional Remote Device Management Converter
Enterprise Ethernet DMX Converter
Enterprise Streaming ACN Converter
Professional Color Kinetics Converter
Professional Motion-Triggered Lighting Converter
BeDMX by Sundrax ensures reliable, low-latency wireless DMX control with adaptive frequency hopping, mesh networking, and encrypted transmission.

All relevant industry-standard protocols such as beDMX, Art-Net, sACN, KiNET, RTTrPL (Blacktrax), DMX512 and RDM are supported

Solid series has been specifically designed for adverse environments, hardly accessible and excessively dusty indoor locations. These series include wireless DMX or ArtNet/sACN/RDM transceivers/receivers, bidirectional DMX to ArtNet/sACN converters, wireless DMX/ArtNet/sACN ransmitter/receivers.

All in one: Wireless DMX transceivers, Art-Net/sACN to DMX converter and DMX splitter / booster with RDM functionality for indoor installation Sundrax Entertainment
RadioGate Plus Solid
All-in-one: Wireless DMX transceivers, Art-Net/sACN to DMX converter, and DMX splitter/amplifier with RDM functionality for indoor installation
Universal Wireless Controller for Professional Lighting
Mechanical

Housing: solid case
Material: metal
Dimensions: 181,3 (L) x 59,4 (H) x 130(W)
Mass: 1.2 kg
Mounting: Surface, Truss

Power & Electrical

Input Voltage: 90-250 VAC, 50/60 Hz or 12-24 VDC
Max current consumption: 0.1A

Environment

Operating Temperature: 0...+60°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 44
Certificates: CE compliant, RoHS
Warranty: 36 Month

Control / Data Connections

Supported protocols: DMX512, RDM,
ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2 RTTrPL sACN draft, release
Data refresh rate: 44 Hz
Transmission range (standard antenna): 200m
Communication protocol: Bluetooth 5.0
RF band: 2.4 GHz






Inputs / Outputs

DMX ports: 2 or 4 isolated: 2-4 XLR(M), 2-4 XLR(F) (5 pins)
Wireless channels: 2
Ethernet ports: 10/100 Base-TX, RJ-45/ EtherCon

Configuration / Indication

Setup: Web interface, buttons
Indication: LEDs for DMX, beDMX and Ethernet activity



Package Contents

RadioGate Plus Arma
2 antenna 2.4 GHz

  • RadioGate Plus Solid, 2DMX (3-pin), AC
  • RadioGate Plus Solid, 2DMX (5-pin), AC
  • RadioGate Plus Solid, 4DMX (3-pin), AC
  • RadioGate Plus Solid, 4DMX (5-pin), AC
  • RadioGate Plus Solid, 2DMX (5-pin), DC
  • RadioGate Plus Solid, 4DMX (5-pin), DC
  • RGS-3-2D2CE-AC
  • RGS-5-2D2CE-AC
  • RGS-3-4D2CE-AC
  • RGS-5-4D2CE-AC
  • RGS-5-2D2CE-DC
  • RGS-5-4D2CE-DC
  • 5060452245577
  • 5060452245584
  • 5060452245591
  • 5060452245607
  • 5060452245614
  • 5060452245621
