PixelGate DIN

DIN Rail Mounted Pixel Routing and Management

Art-Net/sACN Digital Pixel Controller with built-in 2-ports ethernet switch for DIN rail installation

PixelGate DIN is a high-tech controller designed to control addressable LEDs and LED drivers via the SPI interface. The device provides synchronous control of up to eight independent SPI channels, each of which can be either single-wire or two-wire. The device supports up to 1024 control channels per channel, allowing up to 340 RGB LEDs (per wire) or up to 2720 RGB LEDs per device to be connected at a refresh rate of 44 Hz (44 FPS).

The controller is fully compatible with modern lighting control protocols, including ArtNet (versions 1, 2, 3, and 4) and sACN (both draft and final versions). This ensures integration into professional DMX networks and allows PixelGate DIN to be used in systems built on industrial lighting control standards.

Supported SPI Drivers

The controller supports a wide range of SPI drivers, including:

  • Single-wire drivers: WS2811, WS2812B, WS2818, TM1809, UCS1903, UCS1903B, UCS1909, UCS1909B, UCS1912, UCS1912B, UCS2903, UCS2903S, UCS2909, UCS2912, INK1002, INK1003, LX1003, and similar
  • Two-wire drivers: WS2801, WS2803, DM413, APA102, LPD8803, LPD8806, and similar

Upon request, support for any other similar types of LEDs can be added via the web interface. This versatility makes PixelGate DIN compatible with any type of addressable LEDs used in architectural lighting, stage lighting, and interactive light installations.

The device is powered by an external DC source with a wide voltage range– from 5 to 48 V–which expands the possibilities for using various types of LEDs and high-power LED assemblies, designed for high voltages.

To create distributed control networks with serial connection of multiple controllers, PixelGate DIN has a built-in powerful two-port Ethernet switch (10/100 Mbps), which ensures reliable data transmission without the need for additional network equipment and allows devices to be connected in cascade.

All controller parameters are configured through a built-in lightweight web interface, providing intuitive control, diagnostics, and firmware updates.

The device housing is adapted for mounting on a standard DIN rail and occupies 4 mounting modules. The design is intended for operation both indoors and in outdoor distribution cabinets, including conditions with negative temperatures ranging from -40 to +85 degrees Celsius.

  • UltraStart Sundrax Entertainment Lighting Control

    UltraStart

    UltraStart

    Ready device in less than 3 seconds after power supply

  • Natural Heat Convection Sundrax Entertainment Lighting Control

    Natural Heat Convection

    Natural Heat Convection

    No fans, no coolers, no vent slots - full protection from dust

  • Friendly-UI Sundrax Entertainment Lighting Control

    User-Friendly Web Interface

    User-Friendly Web Interface

    A simple web interface that works exactly as the user expects it to

  • Permanently laser-etched aluminum housing

    Maintaining performance at voltages up to 305 V

    Support for ArtNet (1,2,3,4), sACN (Draft, Release) protocols

    Supports two Ethernet ports

    Supports one and two wire SPI interface

    Wide voltage range support 5V to 48V

    Support for a large number of different address

    LEDs and addressable LED drivers

    Intuitive web interface

    SPI control up to 8 independent groups of LEDs

DMX Connection Diagram
Wiring diagram for PixelGate DIN illustrating Art-Net input, power connections, and SPI outputs

Enterprise Ethernet DMX Converter
Enterprise Streaming ACN Converter

All relevant industry-standard protocols such as Art-Net and sACN are supported

Lightweight and compact DIN Series are the best choice for fixed cabinetbased installations with DIN rail mounting available. All the advantages of standard converters, designed in DIN cases.

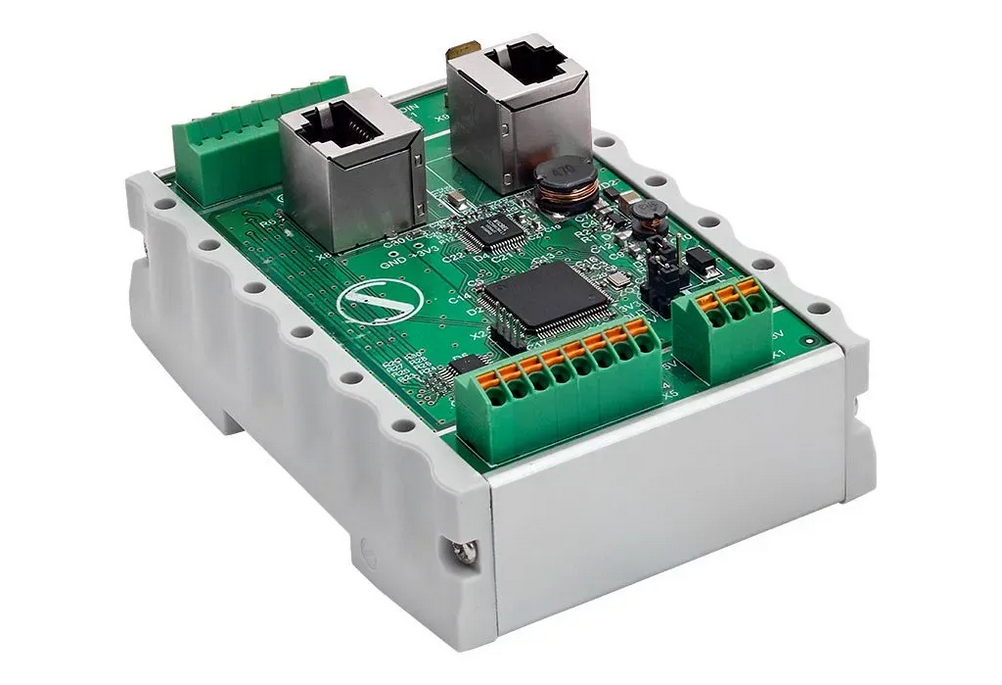

PixelGate DIN controller mounted on a standard DIN rail with rugged aluminum housing

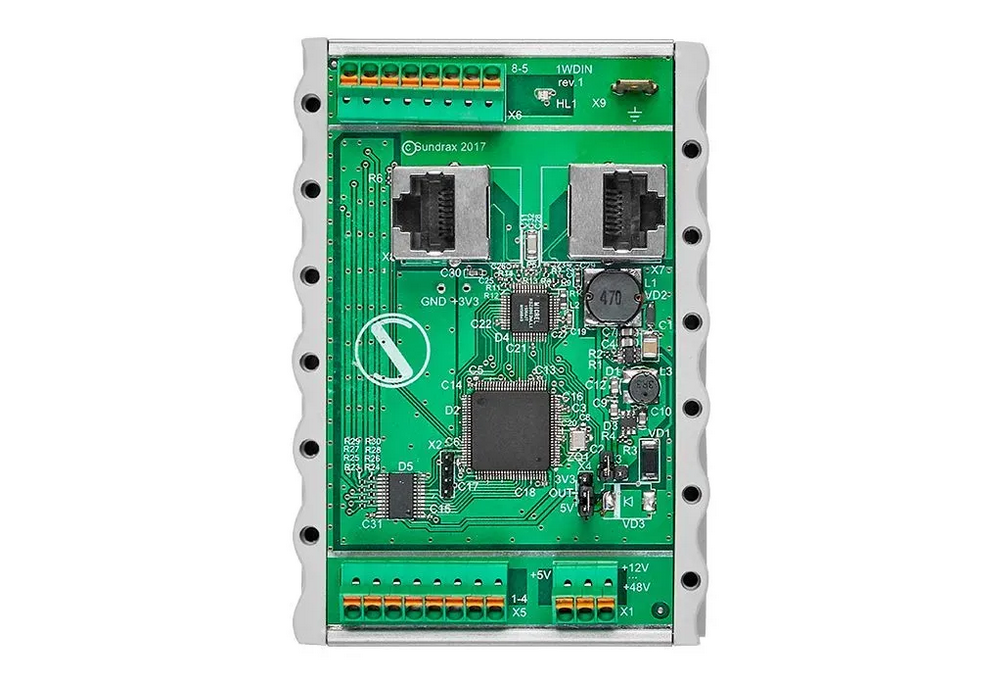

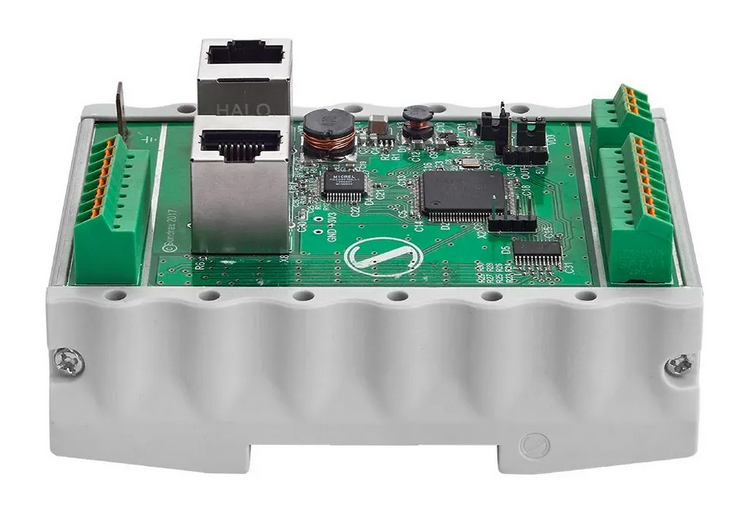

PixelGate DIN
Art-Net/sACN Digital Pixel Controller with built-in 2-ports ethernet switch for DIN rail installation
DIN Rail Mounted Pixel Routing and Management
Mechanical

Enclosure: DIN rail (4 modules)
Material: metal, plastic
Dimensions, mm: 72 (L) x 50 (H) x 105 (W)
Weight: 0.35 kg
Mounting: DIN rail

Power & Electrical

Power supply: 5-48 V
Fuse: 0.5 A
Max power consumption: 5W

Environment

Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months

Control / Data Connections

Control interface: ArtNet I, II, III, IV / sACN
Channels: 8 SPI

Inputs / Outputs

Ethernet ports: 2 (10/100 Base-TX)
Ethernet connectors: 2 RJ-45 / etherCON
Output control: up to 8, TTL 3 / 5V

Configuration / Indication

Configuration: web interface

Package Contents

PixelGate DIN
Сonnector set
