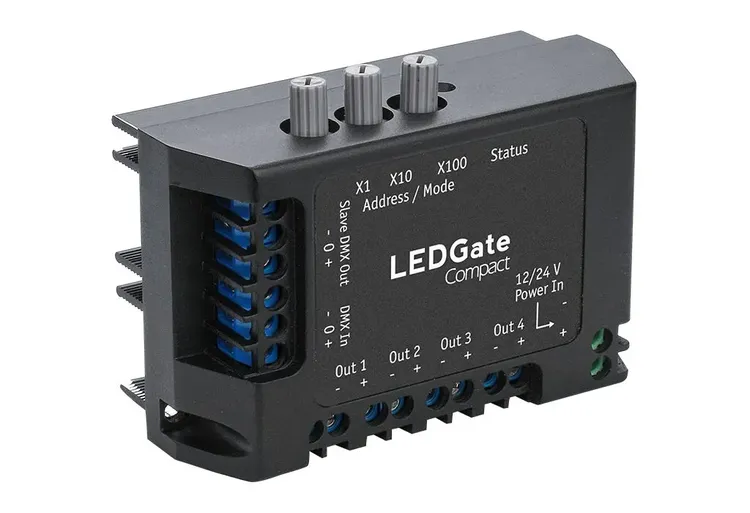

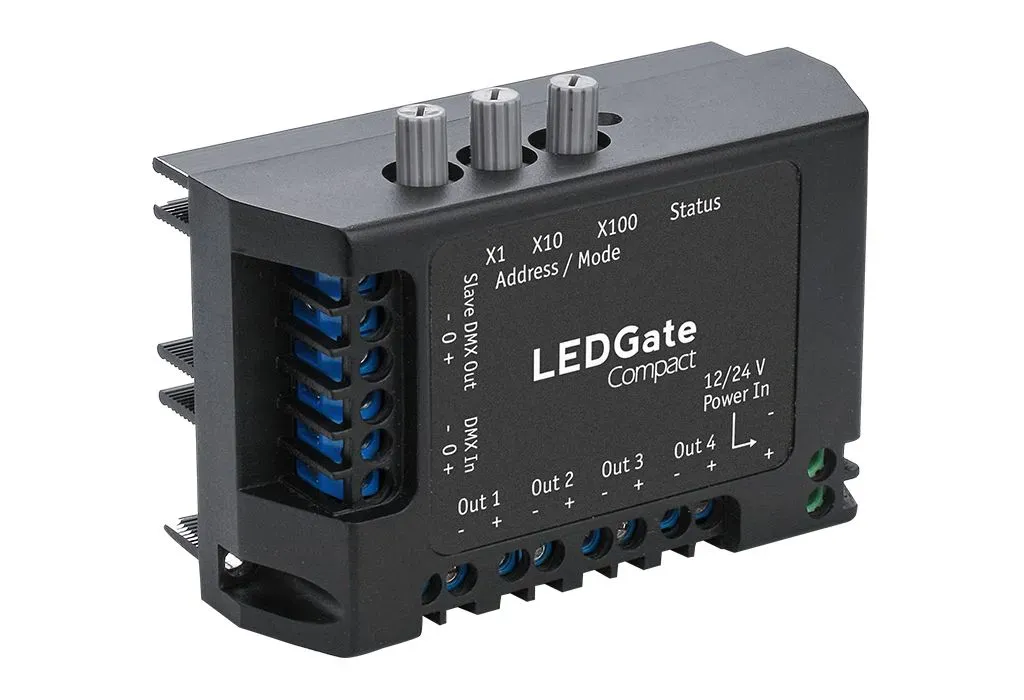

LEDGate Compact

Ultra-Compact LED Management System

Ultra compact 8/16 bit universal 12-24V DC with RDM functionality constant voltage DMX LED controller designed for use in theatrical scenery

LEDGate Compact is a configurable power supply for LED control via DMX512 protocol.

The device is designed to control up to four PWM LED control channels (LEDs, LED strips, etc.) via DMX512 protocol. LEDGate Compact provides short-circuit protection on each channel, precise dimming characteristics, flicker-free and supports 8 and 16 bit control mode.

The unit is powered via DC mains, supply voltage 12-24 V, depending on LED type.

LEDGate Compact is configured and monitored via RDM protocol (ANSI E1.20) or rotary switches.

The unit's compact design and low weight allows it to be placed almost anywhere: inside stage elements, on stage sets and on any other surface.

  • UltraStart Sundrax Entertainment Lighting Control

    UltraStart

    UltraStart

    Ready device in less than 3 seconds after power supply

  • Galvanic Isolated Ports Sundrax Entertainment Lighting Control

    Galvanic Isolated Ports

    Galvanic Isolated Ports

    Full isolation of each port to create reliable protection against current surges

  • Natural Heat Convection Sundrax Entertainment Lighting Control

    Natural Heat Convection

    Natural Heat Convection

    No fans, no coolers, no vent slots - full protection from dust

  • Direct connection with LED equipment
    Smooth light regulation
    Independent short-circuit protection on each channel

Mechanical

Enclosure: surface mounted case
Material: metal, plastic
Dimensions, mm: 87(L) x 37(H) x 62(W)
Weight: 0.18 kg
Installation: stage equipment, lamps, etc.

Power & Electrical

Power supply: 12-24 V
Max. current per output: 5 A
Max. total current at the outputs: 20 A
Max. input power: 500 W

Environment

Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 Month

Control/Data Connections

Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz

Inputs/Outputs

DMX ports: 1
DMX connectors: terminal blocks DG306-5.0-03P
Slave ports: 1
Slave connectors: terminal blocks DG306-5.0-03P
Power In: terminal blocks PT_2.5 / 2-5.0-H-1935776
Outputs for driving LEDs: 4 terminals DG306-5.0-02P

Configuration/Indication

Setting: rotary switches
Indicators: LED, for DMX streams

Package Contents

LEDGate Compact

  • LEDGate Compact
  • LGC-1-D4LED
  • 5060452246505
