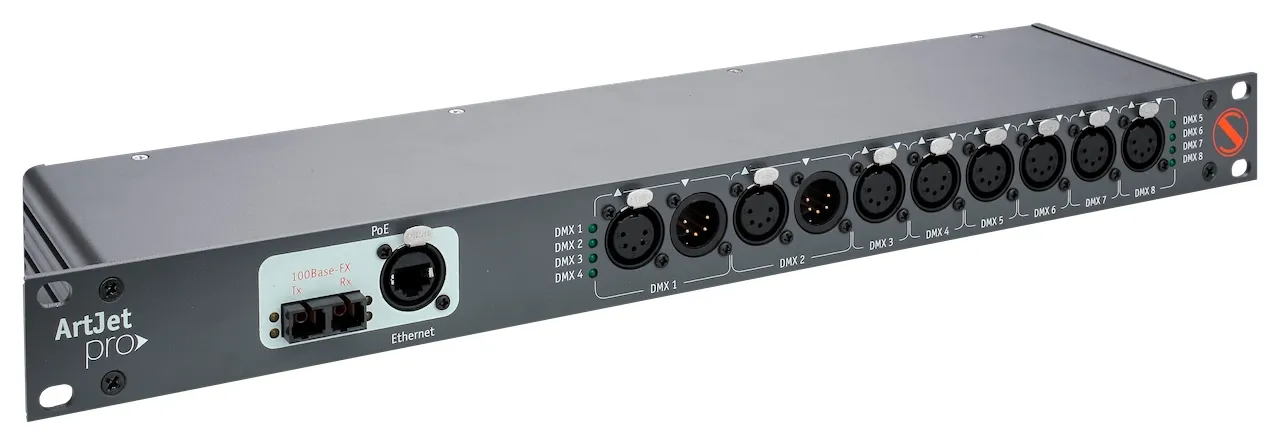

ArtJet Pro

Bidirectional DMX ArtNet/sACN converter, splitter, booster, intelligent merger with fibre optic link

Rack mounted ArtJet Pro is smart solution to transmit more DMX universes through single Ethernet LAN 10/100Base-T or fibre 100Base-FX link and especially advantageous for long distance installations. Fibre link enhances length of direct communication between transceivers up to 2000 metres eliminating use of unnecessary switches or repeaters. Supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,2, RTTrPL. Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade. Able to merge up to 4 incoming ArtNet/sACN/KiNet/RTTrPL streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs. Can be managed by web interface, ArtGate utility, or any standard software supporting ArtNet. Available as classic Ethernet-DMX ArtGate Pro with up to 16 DMX outputs.

DMX Bi-Direct
DMX Bi-Direct
Bidirectional DMX network, faultless conversion in both ways
Supports RDM
Supports RDM
Full RDM E1.20 support (controller/responder), bi-directional control and communication that simplify the maintenance of your lighting system
UltraStart
UltraStart
Ready device in less than 3 seconds after power supply
Galvanic Isolated Ports
Galvanic Isolated Ports
Full isolation of each port to create reliable protection against current surges
Natural Heat Convection
Natural Heat Convection
No fans, no coolers, no vent slots - full protection from dust
Power over Ethernet
Power over Ethernet
PoE 802.3af mode A, B: network cable may carry power supply, only network connection may be made
2 IP adresses per Device
2 IP adresses per Device
Each device has an additional Master IP that guarantees successful connection
User-Friendly Web Interface
User-Friendly Web Interface
A simple web interface that works exactly as the user expects it to

Overview

Rack mount bidirectional DMX512-Ethernet converter, splitter, booster, intelligent merger. ArtGates supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL. Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade to merge up to 4 incoming streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs.

Watch on YouTube

- Integrated fibre optic port, support PoE
- Minimum loading time, fastest recovery after short power failure
- Master IP that never gets lost
- Full protection from dust and smoke increases product lifetime
- Maximum surge protection (100-315 V) Full galvanic isolation of all ports Simple user-friendly web interface Configurable DMX port direction

Mechanical

Housing: Solid case
Material: Metal
Dimensions, mm: 482(D) x 44(H) x 110(W)
Mass: 1.2 kg
Mounting: Rack 1 unit

Power & Electrical

Power supply: ~90-250 VAC, 50/60 Hz; PoE
Input Power (max): 5W
Mains Fuse: 0.5 A

Environmental

Operating Temperature: 0...+60°C
Storage Temperature: -50...+70°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Warranty: 36 Month (Return to base)

Control / Data Connections

Supported protocols: ArtNet I, II, III,
IV/ sACN, DMX512, RDM
Data refresh rate: 44 Hz

Inputs / Outputs

DMX ports: 8
Connectors: 1 XLR (M), 8 XLR (F) (5-pin, 3-pin)
Ethernet port: 10/100 Base-TX (up to 100m)
Fiber port: 100 Base-FX (up to 2000 m)
Fiber Optic connectors: duplex SC
Ethernet connectors: RJ-45/ EtherCon

Configuration / Indication

Setup: Web interface
Indication: LEDs for DMX and Ethernet activity

Package Contents

ArtJet Pro
User guide
Power cable

ArtJet Pro, 8 DMX inputs/outputs (3-pin), 1 Ethernet port, 1 Fiber port
ArtJet Pro, 8 DMX inputs/outputs (5-pin), 1 Ethernet port, 1 Fiber port

AJP-3-8DEF
AJP-5-8DEF
